Structural Stud
Interior & Exterior Framing

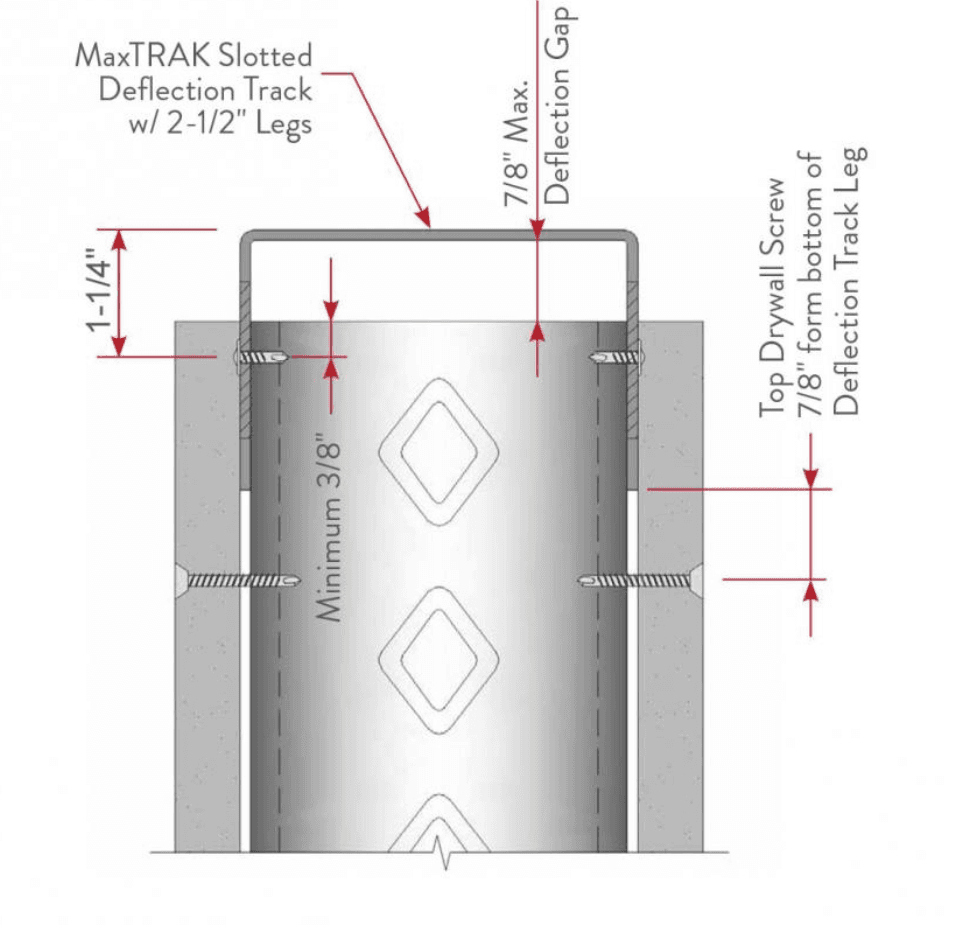

Head-of-Wall (HOW) Composite w/MaxTRAK
Product Usage
To be used with:
- Max. deflection gap of 7/8”
- 30mil (min.) 2-1/2” Leg MaxTRAK
- 5/8” Type X Gypsum board on both sides of wall
- Full height in vertical orientation
- Leaving a 7/8” max. deflection gap
- Not having the board attached to the top deflection track is allowed
Not to be used with:
- Resilient Channel
- Sound Clips
- 1/2” Gypsum Board
- Horizontally Installed Board
